SMARTsaa Single Axis Vibration Transmitter, Model Name/Number: Vb-420 Svb

Description

Product Description

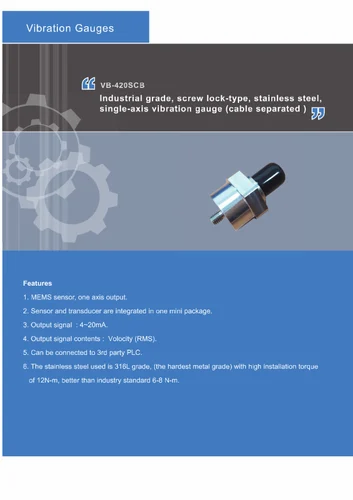

Industrial grade, Screw Lock-Type, Single-Axis Vibration Gauge (Separation Cable)

The VB-420 vibration gauge (output 4-20 mA signal) can be directly connected to the existing PLC.
It can be integrated with advanced IIoT (Industrial Internet of Things) Gateway to work with remote smart mobile devices.

Features

1. MEMS sensor, one axis output.
   2. Sensor and transducer are integrated in one mini package.
   3. Output signal: 4-20mA.
   4. Output signal contents: Speed (RMS)
   5. Can be connected to 3rd party PLC.
   6. Also available: AD-300 Analogue-To-Digital converter that converts 4-20mA / 0-10V , Analogue Signals into digital RS-485 signals (optional).
   7. The stainless steel used is 316L grade, (the hardest metal grade) with high installation torque of 12N-m, better than industry standard 6-8 N-m.

Specifications

Operating Voltage   : 15-25V

Measuring Range     : 0-25 mm/s (RMS)

Frequency Range     : 10Hz to 1000Hz for ISO2954

Output Signal           : 4-20mA

Accuracy                   : < ± 6%

Non-Linearity           : 0.6% of FS

Case Material           : 316L Stainless Steel

Sensing Element      : MEMS

Mounting Torque      : 12Nm

Weight                      : 50g

Operating Temperature Range: -40~85 °C

Maximum Shock        : 10,000g

Sealing                       : IP67

Cable Material            : PVC

Cable Installation Type: Plug-in, M12 connector
